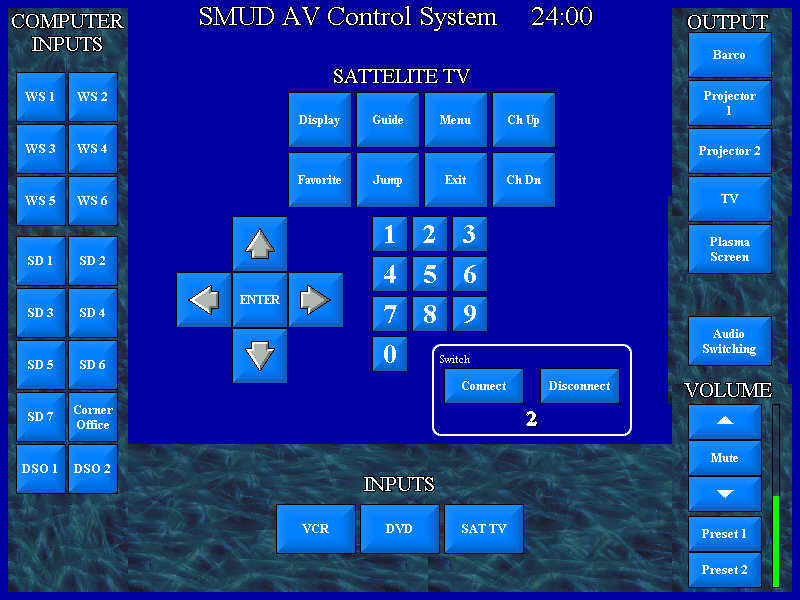

About the size of a high school gymnasium, this system had 17 video
inputs, 5 video outputs (2 projectors, a video wall, a TV and a

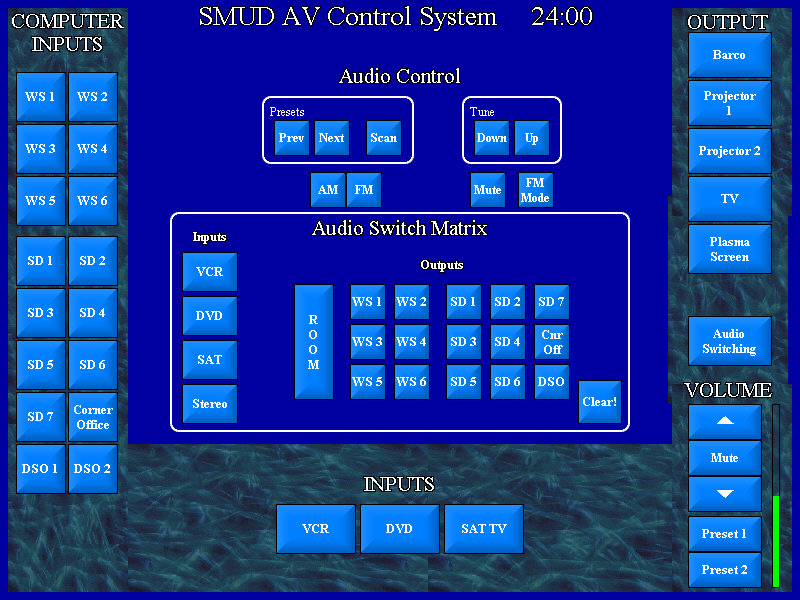

It was unusual in that audio went the oposite, with 3 inputs and 12
outputs, so that each workstation could pipe audio from a training tape
to thier desks.

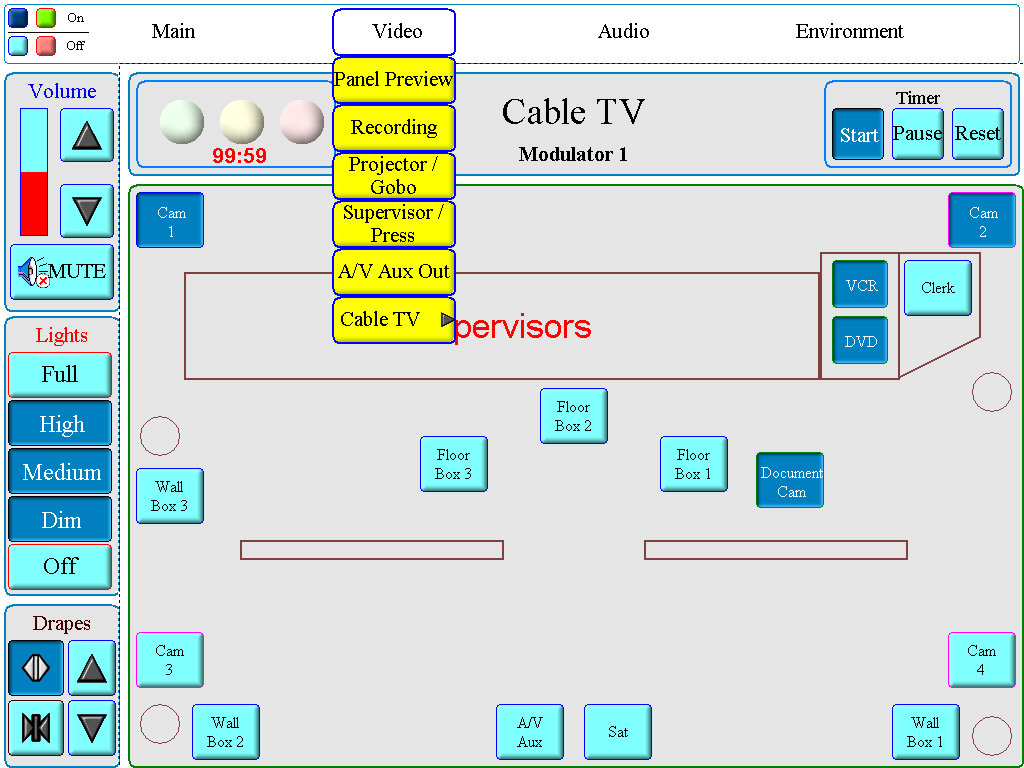

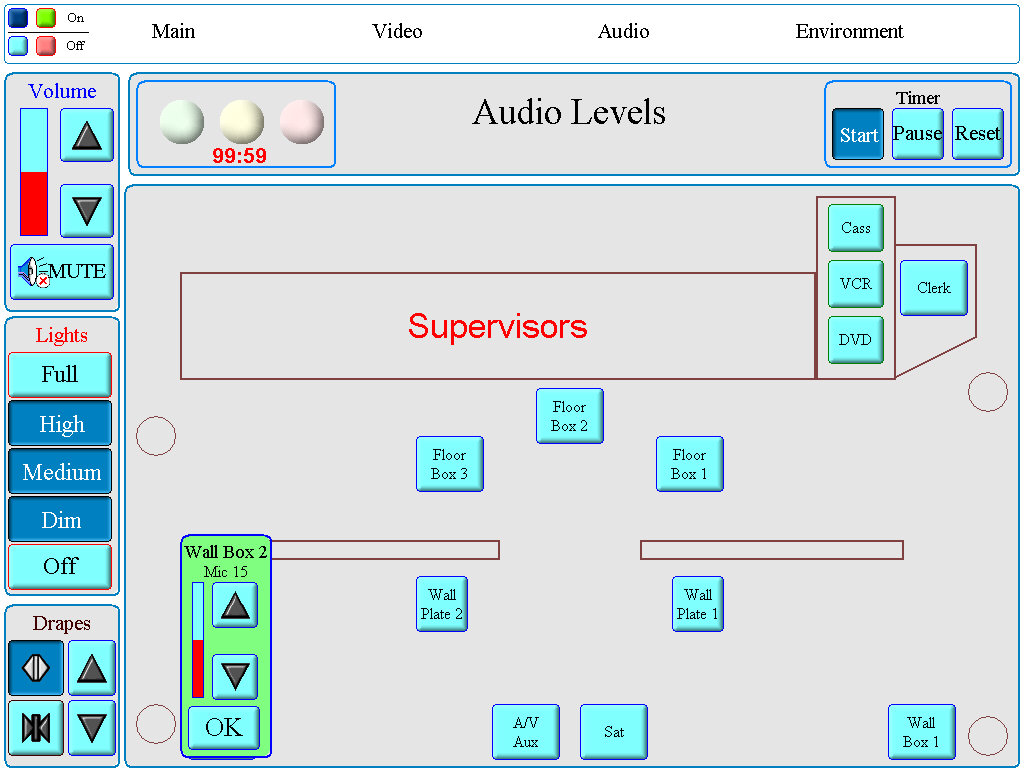

|Loudoun County Board
boardroom. 14 video
inputs and 5 outputs (projector, dais monitors, Cable TV modulators,
press gallery). 16 microphones, 8 with touchpanel gain control. four
CCTV cameras. 3 video switchers. This system required four racks
of equipment, two processors and the capability of two operators
controlling the equipment, ie. the video operator needed to have
control of the cameras while the county clerk was simultaneously
controlling audio sources.
Baltimore School of Medicine
facility. Four groups of four classrooms, each with independant control
of it's video sources and outputs, plus master vieo and audio
feeds and master and web based control panels.

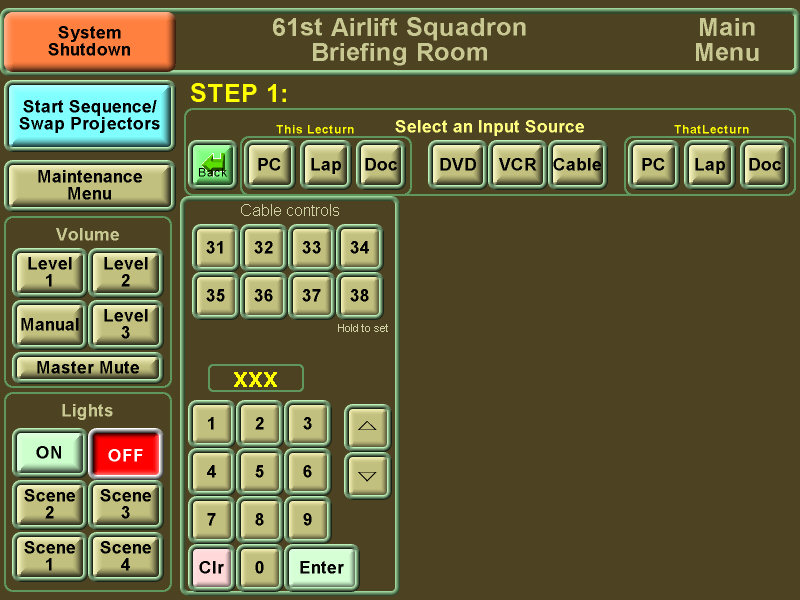

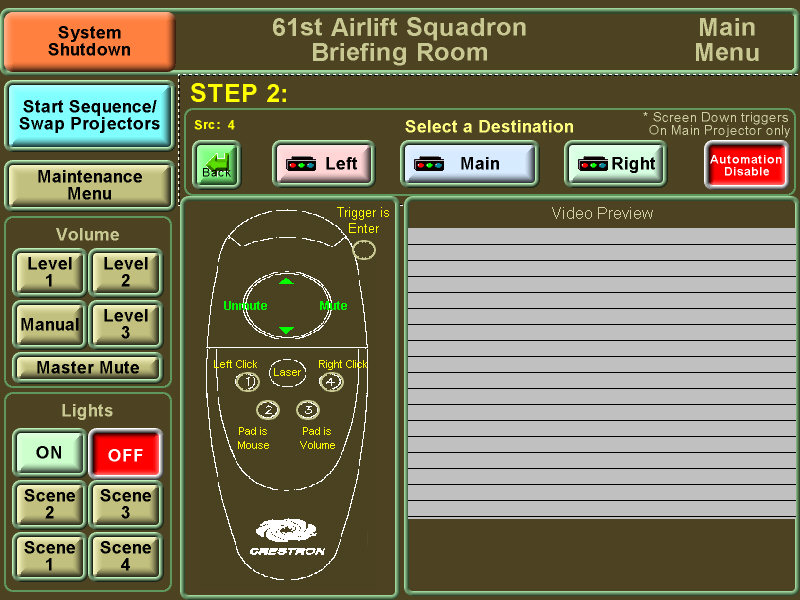

||Main breifing room,
desk and 2 conference rooms. 8 projectors spread across 4 rooms,
wireless control panels, wireless mice, lighting control and
considerable automation . This project required lighting, volume,
screen and source presets controled with one touch operation.
